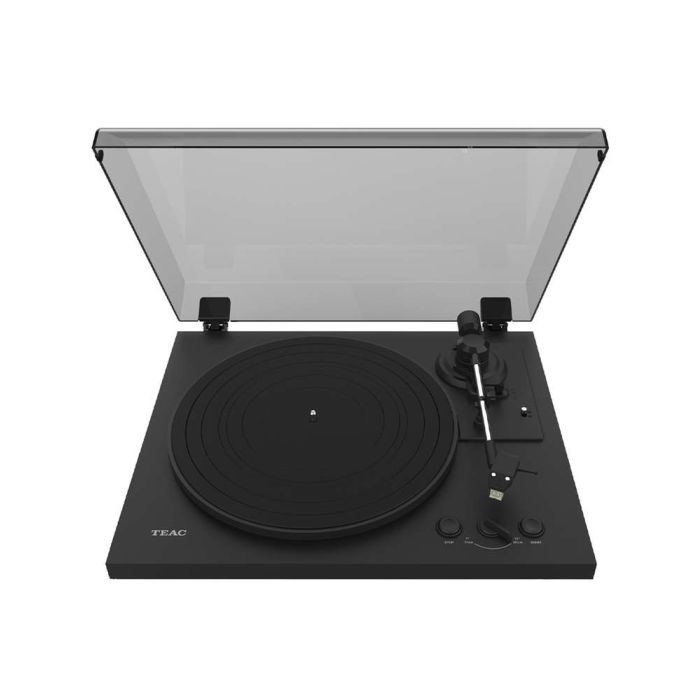

Teac TN-175-B Full-Automatic Belt-Drive Analog Turntable Black
£179.99
- ColourBlack
- Manufacturer Guarantee1 year
- EAN4907034223329
2 speed turntable with full automatic operation
The TN-175 plays LP, EP records. The tone arm automatically moves to play the vinyl and returns to the original position as playback finished. A VM (MM)-type cartridge AT3600L by audio technica is pre-installed to the static balanced straight tonearm at the factory, so you can start playing records as soon as you open the box.
High Quality MDF cabinet construction
Unlike others with plastic chassis, a single wooden board with MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.
Built in MM type Phono EQ amplifier
Enjoy vinyl playback with any amplifier regardless of the type of inputs. The TN-175 supports both Phono and Line output that allows you to play vinyl with or without a Phono pre-amp.
Authentic belt drive turntable
The plastic platter is driven by a high torque DC motor, while precision stainless steel spindle maintain accurate rotation speed.
Features at a glance
Full automatic belt drive turntable
Static balance straight tonearm
High Quality MDF construction for improved resonance reduction
Vibration absorbing rubber bumper feet
Detachable acrylic dust cover
Built in MM type p hono pre amplifier
High quality MM cartridge AT3600L by audio technica pre installed
Phono and Line outputs
2 speed (33/45 RPM)
Included Accessories
Rubber Mat x 1
EP Adapter x 1
VM (MM type Cartridge A T3600L x 1 ( Pre installed)
Dust Cover x 1
Dust Cover Hinges x 2
RCA Audio Cable x 1
AC Adapter (GPE053A V120050 Z) x 1
Owner’s Manual (including Warranty)
The TN-175 plays LP, EP records. The tone arm automatically moves to play the vinyl and returns to the original position as playback finished. A VM (MM)-type cartridge AT3600L by audio technica is pre-installed to the static balanced straight tonearm at the factory, so you can start playing records as soon as you open the box.
High Quality MDF cabinet construction
Unlike others with plastic chassis, a single wooden board with MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.
Built in MM type Phono EQ amplifier
Enjoy vinyl playback with any amplifier regardless of the type of inputs. The TN-175 supports both Phono and Line output that allows you to play vinyl with or without a Phono pre-amp.
Authentic belt drive turntable
The plastic platter is driven by a high torque DC motor, while precision stainless steel spindle maintain accurate rotation speed.
Features at a glance
Full automatic belt drive turntable
Static balance straight tonearm
High Quality MDF construction for improved resonance reduction
Vibration absorbing rubber bumper feet
Detachable acrylic dust cover
Built in MM type p hono pre amplifier
High quality MM cartridge AT3600L by audio technica pre installed
Phono and Line outputs
2 speed (33/45 RPM)
Included Accessories
Rubber Mat x 1
EP Adapter x 1
VM (MM type Cartridge A T3600L x 1 ( Pre installed)
Dust Cover x 1
Dust Cover Hinges x 2
RCA Audio Cable x 1
AC Adapter (GPE053A V120050 Z) x 1
Owner’s Manual (including Warranty)
Turntable section
Drive System Belt Drive
Motor DC Motor
Speed 33-⅓ rpm, 45 rpm
Wow and Flutter 0.2% or less
Signal-to-Noise Ratio 67dB or higher (A-weighted, 20kHz LPF)
Platter Molded resin
Diameter of Platter 290mm
Tonearm section
Type Static Balance, Straight
Effective Arm Length 207.9mm
Tracking Force 3.5g
Cartridge section
Type VM (equivalent to MM)
Output Voltage 3.5mV (1kHz, 5cm/s)
Tracking Force 3.5g ±0.5g
Cartridge Weight 5.0g ±0.3g
Head-shell Weight 10g (including Screws, Nuts and Wires)
Phono Equalizer Amplifier
Type of Amplifier MM type (On/Thru switchable)
Analog Output
Connector RCA Pin jack (Gold-plated) × 1 pair
Output Voltage Phono/Line switchable
Phono Output 2.5mV
Line Output 150mV
General
Power AC 100-240V, 50/60Hz
Power Consumption 6.0W (less than 0.2W at Standby)
Overall Dimensions
(W×H×D) 16.5" × 4.1" × 14.0"
420 × 105 × 355 mm
Weight Approx. 7-¾ lbs. / 3.5 kg
Accessories Rubber Mat, EP Adapter, VM-type Cartridge (AT3600L, Pre-installed), Platter, Dust Cover, Hinge × 2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual
Drive System Belt Drive
Motor DC Motor
Speed 33-⅓ rpm, 45 rpm
Wow and Flutter 0.2% or less
Signal-to-Noise Ratio 67dB or higher (A-weighted, 20kHz LPF)
Platter Molded resin
Diameter of Platter 290mm
Tonearm section
Type Static Balance, Straight
Effective Arm Length 207.9mm
Tracking Force 3.5g
Cartridge section
Type VM (equivalent to MM)
Output Voltage 3.5mV (1kHz, 5cm/s)
Tracking Force 3.5g ±0.5g
Cartridge Weight 5.0g ±0.3g
Head-shell Weight 10g (including Screws, Nuts and Wires)
Phono Equalizer Amplifier
Type of Amplifier MM type (On/Thru switchable)
Analog Output
Connector RCA Pin jack (Gold-plated) × 1 pair
Output Voltage Phono/Line switchable
Phono Output 2.5mV
Line Output 150mV
General
Power AC 100-240V, 50/60Hz
Power Consumption 6.0W (less than 0.2W at Standby)
Overall Dimensions
(W×H×D) 16.5" × 4.1" × 14.0"
420 × 105 × 355 mm
Weight Approx. 7-¾ lbs. / 3.5 kg
Accessories Rubber Mat, EP Adapter, VM-type Cartridge (AT3600L, Pre-installed), Platter, Dust Cover, Hinge × 2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual
| Manufacturer | Teac |
|---|---|
| GTIN | 4907034223329 |
| Colour | Black |
| Model Number | TN-175-B |
